Compatibility
This kit is designed to convert most any Tuttio/Tuttio clone bike with a 16mm keyway shaft or gear reduction spline shaft.
Notes
- NEVER HAMMER ANYTHING ON YOUR BIKE WHEN INSTALLING THE KIT.
- You will need to remove your swing arm to get the belt on, but once the belt is on, it should last for a very long time (expecting 5+ years).
Prototype Video

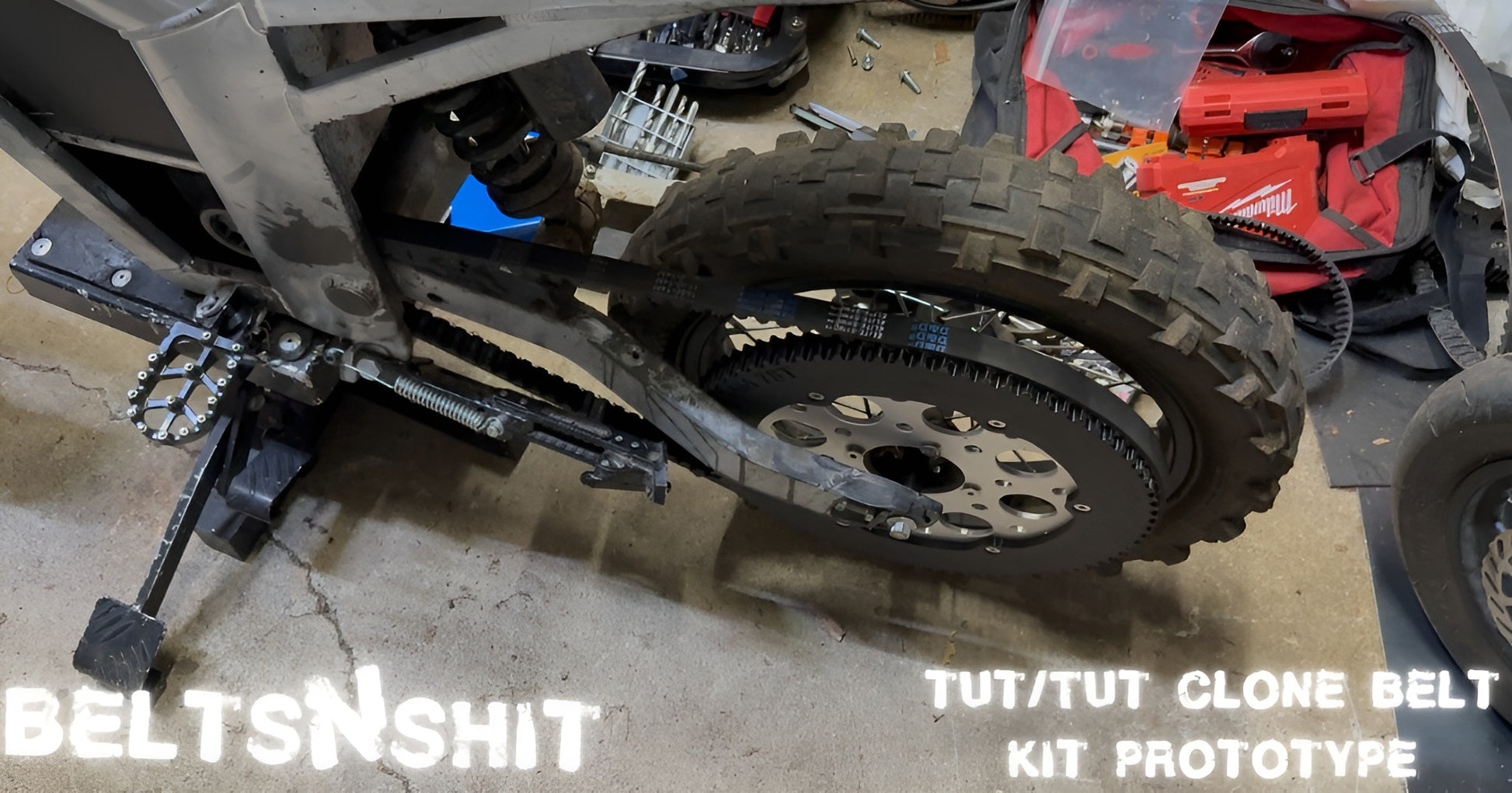

Check out this prototype install on a Tuttio/Yozma/Valtinsu/Tuttio clone pit bike.
Marketing BS
Tired of cleaning chains or that piece of shit tensioner? Want to stealth around without Karens bitching at you because of that noisy chain? Me too. That's why I started using belts on all of my bikes back in 2021. I immediately fell in love with using belts instead of chains. I had to share this discovery with others. I am truly proud of what I was able to create, and I am sure you'll love using a belt instead of a chain as much as I do. Same story. Now on a belt kit built for Tuttio-style pit bikes.
Features
- Quieter than chains
- Smooth power delivery
- Maintenance free
- Works with Tuttio, Yozma, Anyland, Valtinsu, and other Tuttio clone pit bikes
Pros and Cons
Pros
- Quiet
- No maintenance
- Clean
- Long-lasting belt life
- Smoother power delivery
Cons
- Initial price. Over the kit's lifetime, the savings from chain replacements, lube, and maintenance will make the overall price of the belt kit lower.
- Not as durable as chains for heavy off roading.
- Does not do well in deep snow. The snow builds up in the pulleys and can snap the belt.
What's Included?
- Motor Pulley
- Wheel Pulley, available in plastic or aluminum. The plastic wheel pulley goes over your existing sprocket. Like this.
- Belt
- Hardware marker. This can help to make sure none of the bolts or nuts come loose. Use this on all nuts and bolts.
- Krikit: optional add-on
- Stainless steel hardware and everything you need to install the kit is included.
Belt Tension Tool
Want to know how much tension is on your belt? The best way I have found is to use the Krikit. Available as an optional add-on.
Installation
Be sure to check out the installation guide. Please note that damage from improper installation will not be covered in any way. Be sure to read through this carefully.
Questions?
How do I install it on my bike?
Check out the installation guide
Regen?
Absolutely. Just be sure to not overheat your motor and weld your freewheel.
SX vs MX?
The MX and SX have the same distance from the motor to the rear wheel so the belt length is the same.
What about all the other Razor models?
With a bit of work you can put a belt kit on the following razors:
- MX350
- RSF350
- MX400
- Pocket Mods
- Dirt Quad(Probably)
Let me know what model of Razor you want a belt drive kit for by filling out this form.
What about the old chain tensioner?
Try to unscrew it. I didn't have much luck unscrewing mine so i just cut the bitch out.
What about the old freewheel?
Freewheel stays but needs to be fixed/welded. The rear pulley mounts on to the freewheel just like the old sprocke. Highly recommended using a welded freewheel as this reduces wear and tear on your drivetrain drastically.
Should I worry about snapping a belt?
One time I snapped a belt while testing the limits of the belt's tension. Under normal tension the belt should not snap or skip. If you hear skipping you should check the tension on your belt. Be sure to check out our installation guide for proper installation techniques.
Does it squeek in the rain like my car belt?
No. Only v-belts do this. Timing belts don't slip or squeak even when soaking wet.
Mud?
Not so much with the V1 kit. The V2 kit has slots for debris to pass through the pulleys if you do a lot of mud trails.
What is better for off road riding?
For hardcore off road riding where sticks and shits gets in the gears chain may be better. Most hardcore dirt bike riders use chains. Probably for a good reason. I am working on a tool free belt replacement option that may work well for this scenario.
How did beta testing go?
International shipping?
Yes. Please contact us for details. Taxes and duties are a bitch but doable.
International shipping costs, taxes, duties and fees are never covered by beltsNshit even if we make a mistake and send you the wrong or broken product. Do not place an order if you are not accepting of these terms.
